MITSUBISHI

Brand: MITSUBISHI

Length: 200 mm

Art.-no. 8171470

Manufacturer article no. S25RSVUCR16

All versions

Individual prices for customers after login

You need more information or have not found your desired product?
Product information

METZLER Catalogue

CAD data (available after login)

Certificates/ Documents

 |

 |

Brand

MITSUBISHI

Manufacturer Part Number

S25RSVUCR16

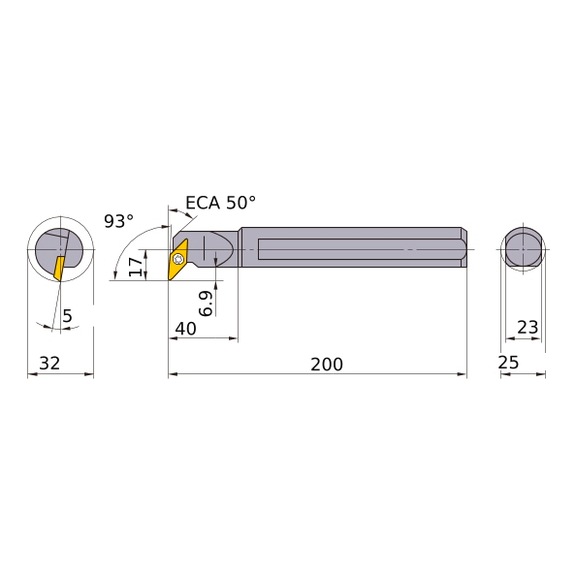

Min. bore diameter (D min.)

32 mm

Shank diameter (d)

25 mm

Length (l1)

200 mm

Clamping surface height (h)

23 mm

Programming size (f)

17 mm

Suitable for indexable inserts (ISO)

VC.. 1604..

Tool design

Right

Gross Weight

0.734 kg
