Brand: FLOTT
Art.-no. 8183112
Manufacturer article no. 212503
Brand | FLOTT |
Manufacturer Part Number | 212503 |

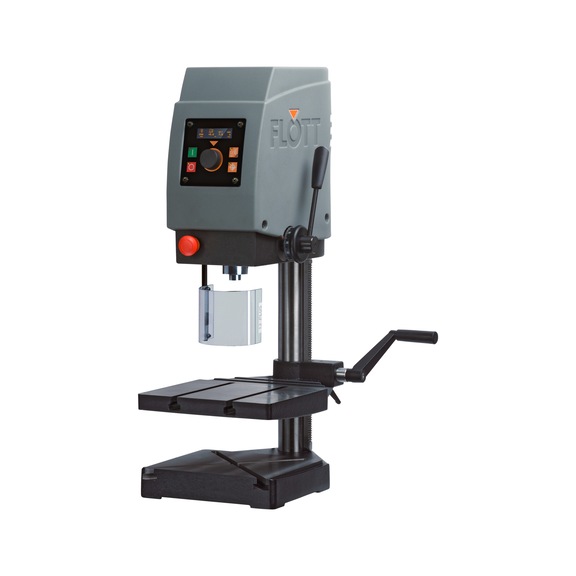

Model | TB 13 Plus MK2 |
Max. drill diameter in steel E335/St 60 (continuous mode) | 13 mm |
Max. drill diameter in steel E335/St 60 (normal mode) | 15 mm |
Max. thread-cutting performance | M8 |
Drill chuck holder | MT 2 |
Spindle stroke | 60 mm |
Column diameter | 70 mm |
Overhang | 220 mm |
Clamping area | 250 x 300 mm |
T-slots on clamping table (number x width x spacing) | 2 x 14/26 x 125 |
Feed type | Manual |
Rotational speed indicator | Digital |
Number of drive levels | Continuous |
Motor output | 0.54 kW |
Min./max. spindle speed | 40-4000 rpm |
Gross Weight | 0.080 kg |
