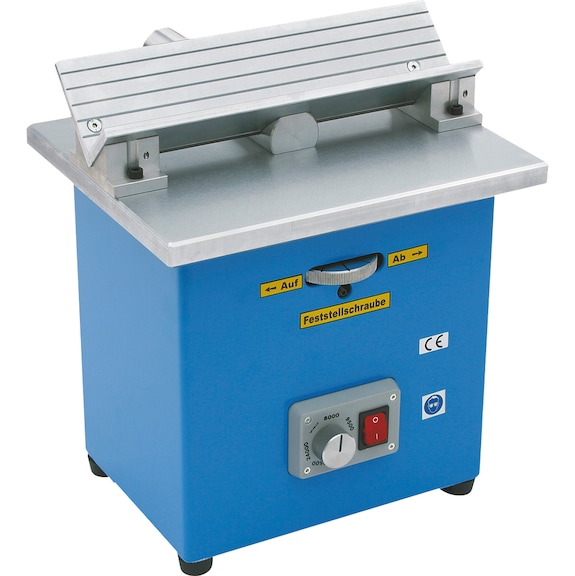

Assfalg KKE2 contour milling machine

Application

Straight edges, drill holes, slotted holes and grooves can be chamfered precisely, quickly and easily. The complete package is rounded off with a prism attachment for machining straight edges. A helpful assistant at a low price.

Execution

• Compact, convenient table-top device
• Minimum workpiece thickness 1 mm
• Chamfer angle can be changed using contour milling cutters with different tip angles
• Speed control for machining various materials
• Can be used for steels, hardened steels, aluminium, brass, copper, plastics ranging from soft plastics to acrylic glass, wood and much more
• Guide ball bearing min. dia. 3 mm

Advantage

• Internal and external contours can be chamfered and rounded
• Dimensional accuracy thanks to ball bearing guide or guide rule
• Very good service life of solid carbide milling cutters
• No chatter marks

Notes

Optionally available with: Prism attachment for straight edges, guide finger for use with pointed contour milling cutter, extraction system with automatic switch-on (for KKE 2 only)

Delivery

Linear stop, socket wrench 17 mm,
union nut, hexagon key 3 mm, collet dia. 6 mm, open-end wrench 14 mm, insert ring with hole dia. 8 mm, prism with extraction nozzle, insert ring with hole dia. 12 mm, collet dia. 8 mm, hexagon key 5 mm (for KKE 2 only), operating instructions
