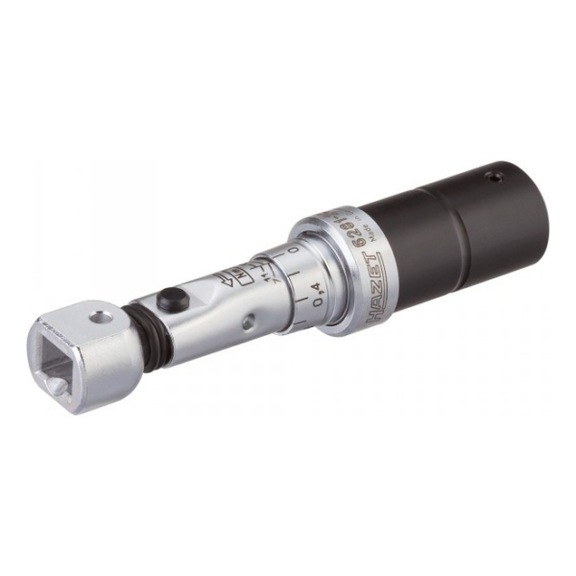

HAZET Torque wrench with DAkkS calibration certificate 6281-2CTCAL

Application Adjusting the control valve of the gas tank on the VW Up! and Caddy Bj. 2012 to Adjustment is necessary after removal or installation Particularly short design for tight spaces Torque wrench with DAkkS calibration certificate Plug-in connection for holding insertion tools Accuracy 4 % of scale value in actuating direction Can be used for right-hand and left-hand threads by turning the insertion tool Can be used for right-hand and left-hand threads SafeHaptic Short travel release Acoustic Kink element With calibration certificate and serial number Setting the desired torque value quickly and safely by turning the handle DIN EN ISO 6789-22017 Made In Germany Output Socket square 9 x 12 mm Length 125.4 mm Tightening torque min-max 5 - 13 Nm Tolerance 4 % Scale graduation Nm 0.2 Nm Effective length of the torque wrench min.max. l1 mm 116.50 - 112.50 Nm Actuating force min.max. kg 4.4 - 11.8 kg Pitch dimension of the adjustment tool l2 17.5 mm Head thickness a 17 mm Head width b 22 mm No more turning back HAZET torque wrenches in the 5000 and 6000 series have been proven in long-term endurance tests that turning back to the smallest scale value is not necessary DAkkS calibration certificate for professional users, especially for the aviation industry Automotive industry New energies Wind turbines Offshore parks Petrochemical industry OilGas Documented traceability ensures complete verifiability
